Triumph GT6 Mk3 1970-73

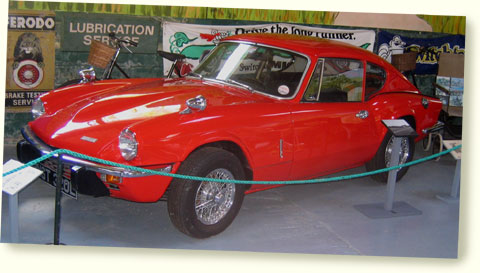

on display at Bentley Wildfowl & Motor Museum

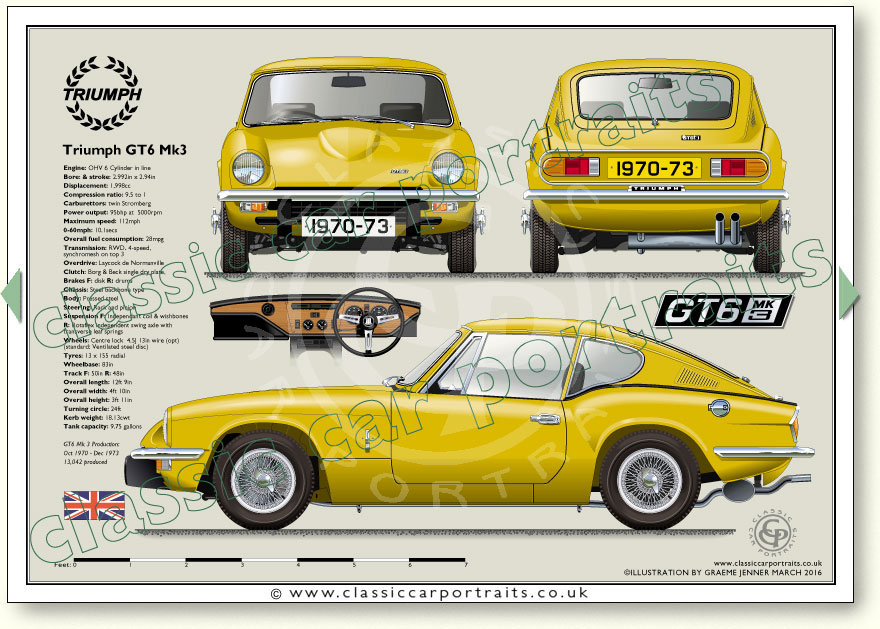

See specifications and museum snapshot below illustration. To my Bentley Wildfowl and Motor Museum page
Engine
OHV 6 Cylinder in line
Bore: 2.94in Stroke:2.992in
Displacement: 1998cc
Compression ratio: 9,5:1
Carburettors: twin Stronberg
Power output: 95bhp at 5000rpm
Performance
Maximum speed: 112mph
Acceleration: 0-60mph 10.1secs
Overall fuel consumption: 28mpg
Transmission
Clutch: Borg 7 Beck single dry plate,
Gearbox: 4-speed, synchromesh on
2nd, 3rd and top gears
Overdrive: Laycock type 0.802
Brakes
Front: disk Rear: drums
Construction
All metal body on backbone frame
OHV 6 Cylinder in line
Bore: 2.94in Stroke:2.992in
Displacement: 1998cc
Compression ratio: 9,5:1
Carburettors: twin Stronberg
Power output: 95bhp at 5000rpm
Performance
Maximum speed: 112mph
Acceleration: 0-60mph 10.1secs
Overall fuel consumption: 28mpg
Transmission
Clutch: Borg 7 Beck single dry plate,
Gearbox: 4-speed, synchromesh on
2nd, 3rd and top gears
Overdrive: Laycock type 0.802
Brakes
Front: disk Rear: drums
Construction
All metal body on backbone frame
Steering
Rack and pinion
Suspension
Front: independant coil and wishbones
Rear: Rotaflex independent swing axle with transverse leaf springs
Wheels
Centre lock 4.5J 13in wire
wheels (non std) with 13 x 155 radial tyres (standard: Ventilated steel disc or bolt on Dunlop wire as optional)
Dimensions & Weight
Wheelbase: 83in
Track - front: 50in
Track - rear: 48in
Overall length: 12ft 9in
Overall width: 4ft 10in
Overall height: 3ft 11in
Turning circle: 24ft
Kerb weight: 18.13cwt
Tank capacity: 9.75 gallons
Production
GT6 Mk 3 Oct 1970-Dec 73 13,042
Rack and pinion
Suspension
Front: independant coil and wishbones
Rear: Rotaflex independent swing axle with transverse leaf springs
Wheels
Centre lock 4.5J 13in wire
wheels (non std) with 13 x 155 radial tyres (standard: Ventilated steel disc or bolt on Dunlop wire as optional)
Dimensions & Weight
Wheelbase: 83in
Track - front: 50in
Track - rear: 48in
Overall length: 12ft 9in
Overall width: 4ft 10in
Overall height: 3ft 11in
Turning circle: 24ft
Kerb weight: 18.13cwt
Tank capacity: 9.75 gallons
Production
GT6 Mk 3 Oct 1970-Dec 73 13,042
