Sunbeam Alpine 1953-54 classic sports car portrait print

Page 082A

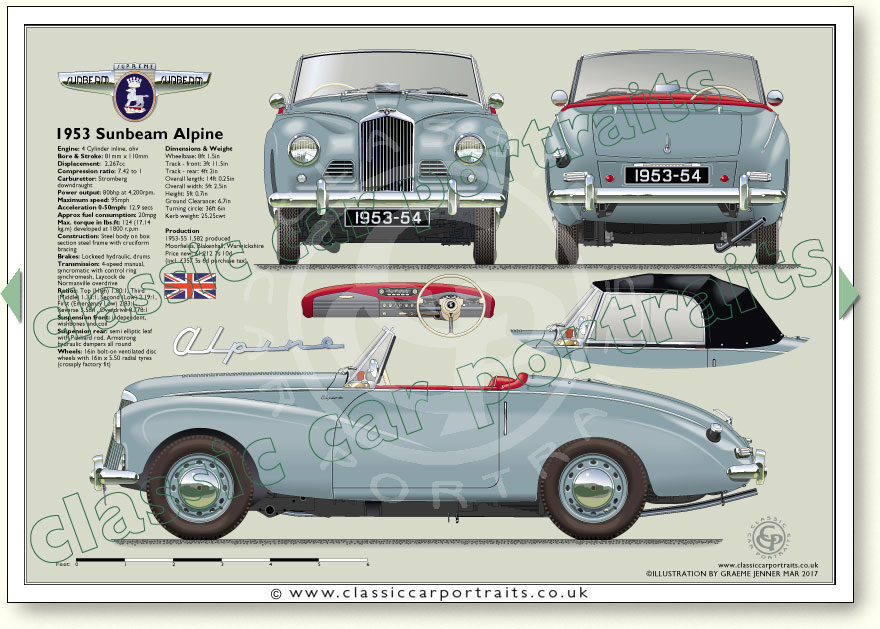

Sunbeam Alpine 1953-54

See specifications below illustration

Whilst the trademark owner has consented to the reproduction of its logo and emblems it has no connection with or responsibility for this drawing or for the technical data and gives no warranty as to its accuracy.

Sunbeam Alpine 1953-54 specifications

Engine
4 Cylinder inline, ohv
Bore: 81mm Stroke: 110mm
Displacement: 2,267cc
Compression ratio: 8:1
Carburettor: twin choke downdraught
Power output: 97.5 bhp at 4,500rpm

Performance
Maximum speed: 104mph
Acceleration: 0-60 mph 16.8 secs
Approx fuel consumption: 20 mpg

Construction
Steel body on box section steel frame with cruciform bracing

Transmission
4-speed manual, syncromesh on top 3 ratios, Laycock de Normanville overdrive
Ratios: 3.28(OD), 4.22(direct), 5.55, 9.14, and 11.81 to 1. Open prop shaft. Hypoid rear axle

Brakes
Lockeed hydraulic, drums

Suspension
Front: Independent, wishbones and coil springs Rear: semi elliptic leaf with Panhard rod, Armstrong hydraulic dampers all round

Wheels & Tyres
16in bolt-on ventilated disc wheels with 16in x 5.50 crossply tyres

Dimensions & Weight
Wheelbase: 8ft 1.5in
Track - front: 3ft 11.5in
Track - rear: 4ft 2in
Overall length: 14ft 0.5in
Overall width: 5ft 2.5in
Turning circle: 36ft
Kerb weight: 25.75cwt

Production
1953-54 3,000 produced
Price new: £1,375 5s 10d
(incl. £405 5s 10d purchase tax)
