Rover 95 1962-64

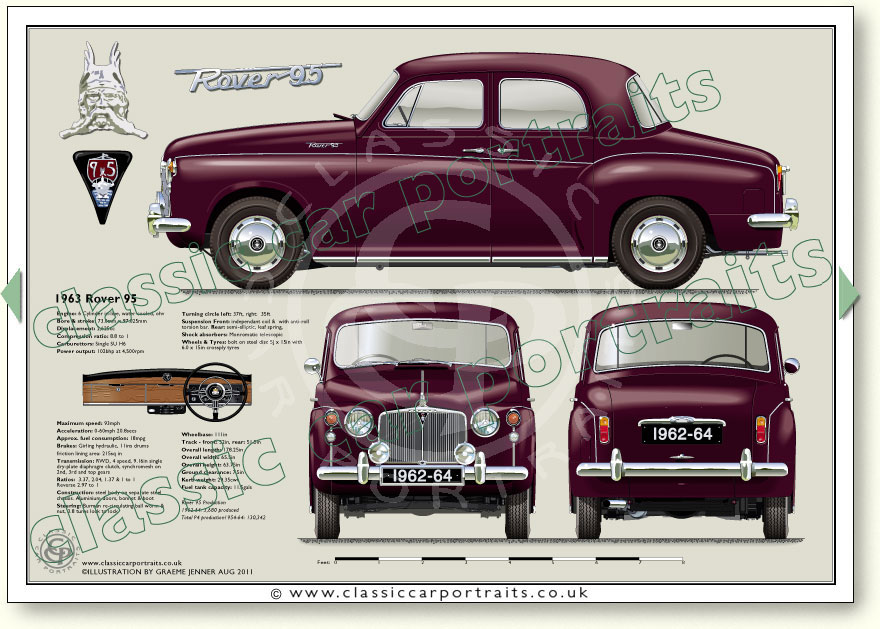

See specifications and museum snapshot below illustration
Page 075B
Rover P4 95 1962-64 Specifications
Engine
6 Cylinder in-line water cooled
Bore: 77.8mm
Stroke: 97.025mm
Displacement: 2,625cc
Valves: Pushrod/overhead type
Main bearings: 7
Compression ratio: 8.8:1
Carburettors: Single SU H6
Power output: 102bhp at 4,750rpm

Performance
Maximum speed: 93mph
Acceleration: 0-60mph 18secs
Approx. fuel consumption: 20mpg

Brakes
Girling hydraulic, 11ins drums
friction lining area: 215sq in
servo assisted

Transmission
Clutch: 9.16in single dry-plate diaphragm
Gearbox: 4-speed, synchromesh on
2nd, 3rd and top gears
Ratios: 3.37, 2.04, 1.37 & 1:1
aReverse 2.97:1

Construction
Steel body with
allumunium doors, bonnet & boot
on separate steel chassis,
Steering
Burman re-circulating ball worm & nut,
3.8 turns lock to lock
Turning circle left: 37ft, right: 35ft

Suspension
Front: independant coil & wishbone
with anti-roll torsion bar
Rear: semi-elliptic, leaf spring,
Shock absorbers: Monromatic telescopic

Wheels & Tyres
Bolt on steel disc 5J x 15in
with 6.0 x 15in crossply tyres

Dimensions & Weight
Wheelbase: 111in
Track - front: 52in
Track - rear: 51.5in
Overall length: 178.625in
Overall width: 65.4in
Overall height: 63.25in
Ground clearance: 7.4in
Kerb weight: 29.35cwt
Tank capacity: 11.5gals

Production
1962-64: 3,680 produced
Total P4 production1954-64: 130,342
