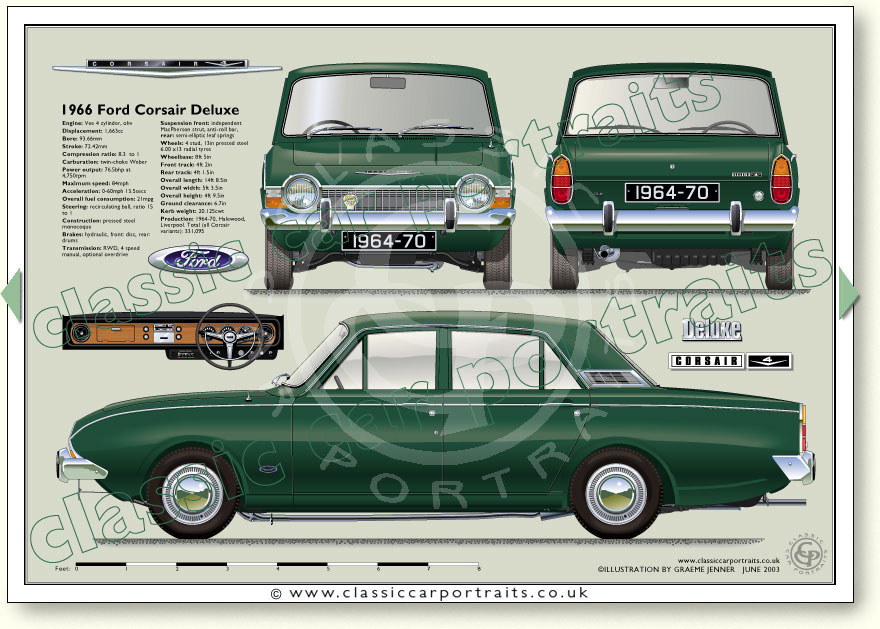

Corsair Deluxe V4 1700 4dr 1963-70 Specifications

Engine
1,663cc V4
Bore: 93.66mm
Stroke: 72.42mm
Valves: pushrod overhead
Compression ratio: 8:3 to 1
Carburettor: twin choke Weber
Power output: 76.5 bhp at 4,750rpm

Performance
Maximum speed: approx. 84mph
Acceleration: 0-60 mph 13.5secs
Overall fuel consumption: 20.5mpg

Transmission
Clutch: Single dry plate
Gearbox: 4 speed, synchromesh
on 2nd, 3rd and top gears
Ratios: Top 1.0, 3rd 1.412,
2nd 2.936, 1st 3.543 to 1
reverse 3.963 to 1
Construction
Pressed steel monocoque

Steering
Recirculating ball
Ratio: 15:1
4.7 turns lock to lock
Turning circle: 36ft 6in

Suspension
Front: Independent MacPherson strut,
Rear: semi-elliptic, leaf spring,
telescopic shock absorbers

Brakes
F: 9.5in disc R: 9 x 1.75in drums

Wheels
Pressed steel 4 studs
6.00 x 13in radial tyres

Dimensions & Weight
Wheelbase: 8ft 5in
Track - front: 4ft 2in
Track - rear: 4ft 1.5in
Overall length: 14ft 8.5in
Overall width: 5ft 3.5in
Overall height: 4ft 9.5in
Ground clearance: 6.7in
Kerb weight: 2,254 lbs

Capacities
Fuel tank: 8 gallons
Sump: 7.5 pints
Cooling system: 13 pints

Production
1963-70, Halewood plant, Liverpool
Total(all Corsair variants): 331,095
