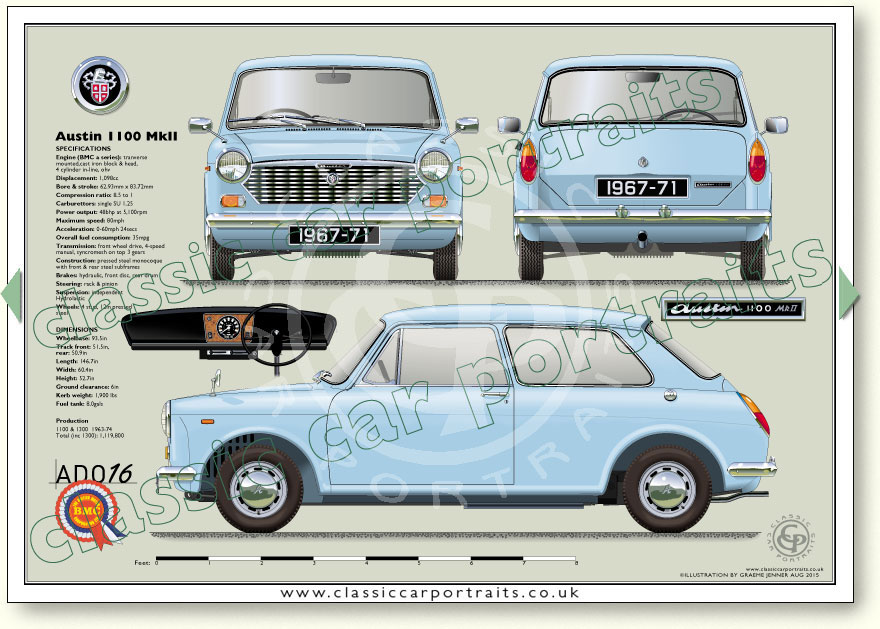

Austin 1100 MkII 2 door 1967-71
See specifications below illustration
Page 014B
BMC ADO16 drawings

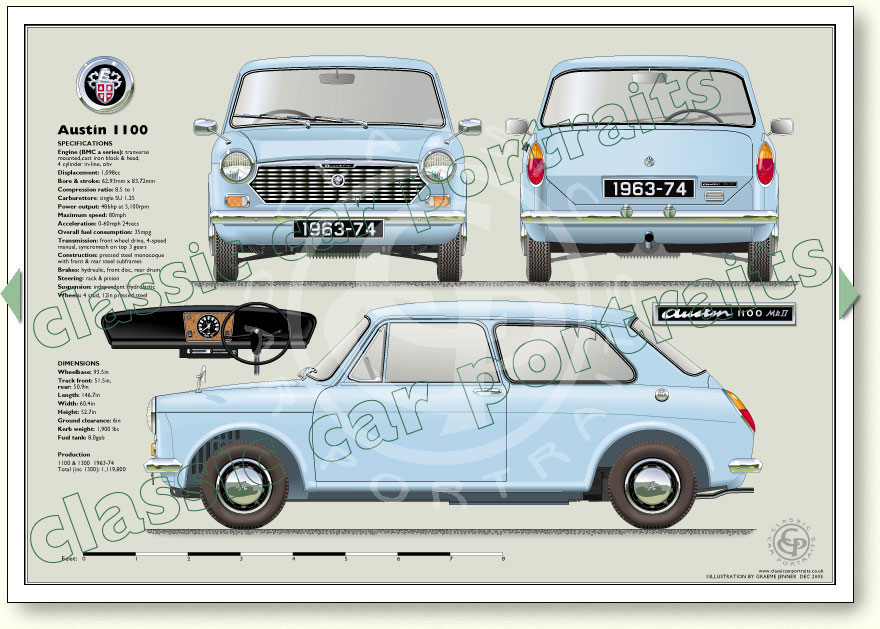

Austin 1100 mk1 1963-67
Austin 1100 mk2 1967-71

Austin 1100 countryman

Austin 1300GT 1969-74

MG 1100 2 door 1962-67
MG 1100 4 door 1963-67
MG 1100 2 door 1967-68
MG 1300 2 door 1967-71

Vanden Plas Princess
1100 1963-68
1300 1968-75

Wolseley 1100 1964-68
Wolseley 1300 mk2 1967-71

Morris 1100 1962-67, 1300,

Morris 1100 Traveller

Riley Kestral, 1100, Riley 1300

Austin 1100 1963-74 specifications
Engine
(tranverse mounted)
4 cylinder in-line,
8 overhead valves
Displacement: 1,098cc
Bore: 62.93mm
Stroke: 83.72mm
Compression ratio: 8.5 : 1
Valves: 2 per cylinder
Carburettors: single SU 1.25
Power output: 48bhp at 5,100rpm

Performance
Maximum speed: 80mph
Acceleration: 0-60mph 24secs
Overall fuel consumption: 35mpg
Transmission
4-speed manual,
syncromesh on top 3 gears
Front wheel drive

Construction
Pressed steel monocoque
with front & rear steel subframes

Brakes
Hyraulic, Front: disc Rear: drum

Steering
Rack & pinion

Suspension
Independent/Hydrolastic suspension
Wheels
4 stud, 12in, pressed steel

Dimensions & Weight
Wheelbase: 93.5in
Track front: 51.5in
Track front: 50.9in
Length: 146.7in
Width: 64in
Height: 52.7in
Ground clearance: 6in
Kerb weight: 1,900 lbs
Fuel tank: 8gals

1100 & 1300 Production
1963 -1974
Total production:1,119,800 (including 1300))
